Product Overview
Key Features
-
Automatically reduces engine RPM when bypass is activated
-
Factory‑set at 7 mm stroke (adjustable 7–14 mm)
-
Rated pressure: 500 bar / 50 MPa / 7250 psi
-
Permissible pressure: 550 bar / 55 MPa / 8000 psi
-
Rated temperature: 160 °C / 320 °F
-
Suitable for commercial pressure‑washer systems
-
Heavy‑duty construction for industrial environments

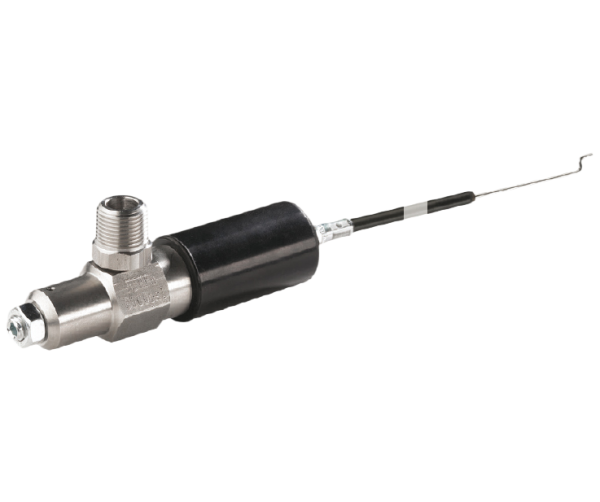

This Engine Throttle Control is designed for high‑pressure pump systems, automatically reducing engine RPM when the pump enters bypass mode. This helps lower fuel consumption, reduce noise, and extend engine life during idle or low‑load operation.
Factory‑set at a 7 mm stroke, the unit can be adjusted up to 14 mm to suit different machines and operating requirements. Built for extreme durability, it handles pressures up to 550 bar (8000 psi) and temperatures up to 160 °C (320 °F), making it suitable for commercial and industrial pressure‑washer setups.
